XP9HP Specifications
| Specifications | |
| Manufacturer | DuroMax Power Equipment |
| Part # | XP9HP |
| Engine Type | 4-Stroke |
| Valve Type | OHV |
| Engine Cooling Type | Forced Air |
| Displacement | 274 cc |
| Bore | 75 mm |
| Stroke | 62 mm |
| Max Output | 3600 rpm |
| Max Torque | 16.5 Nm @ 2500 rpm |
| Shaft Orientation | Horizontal |

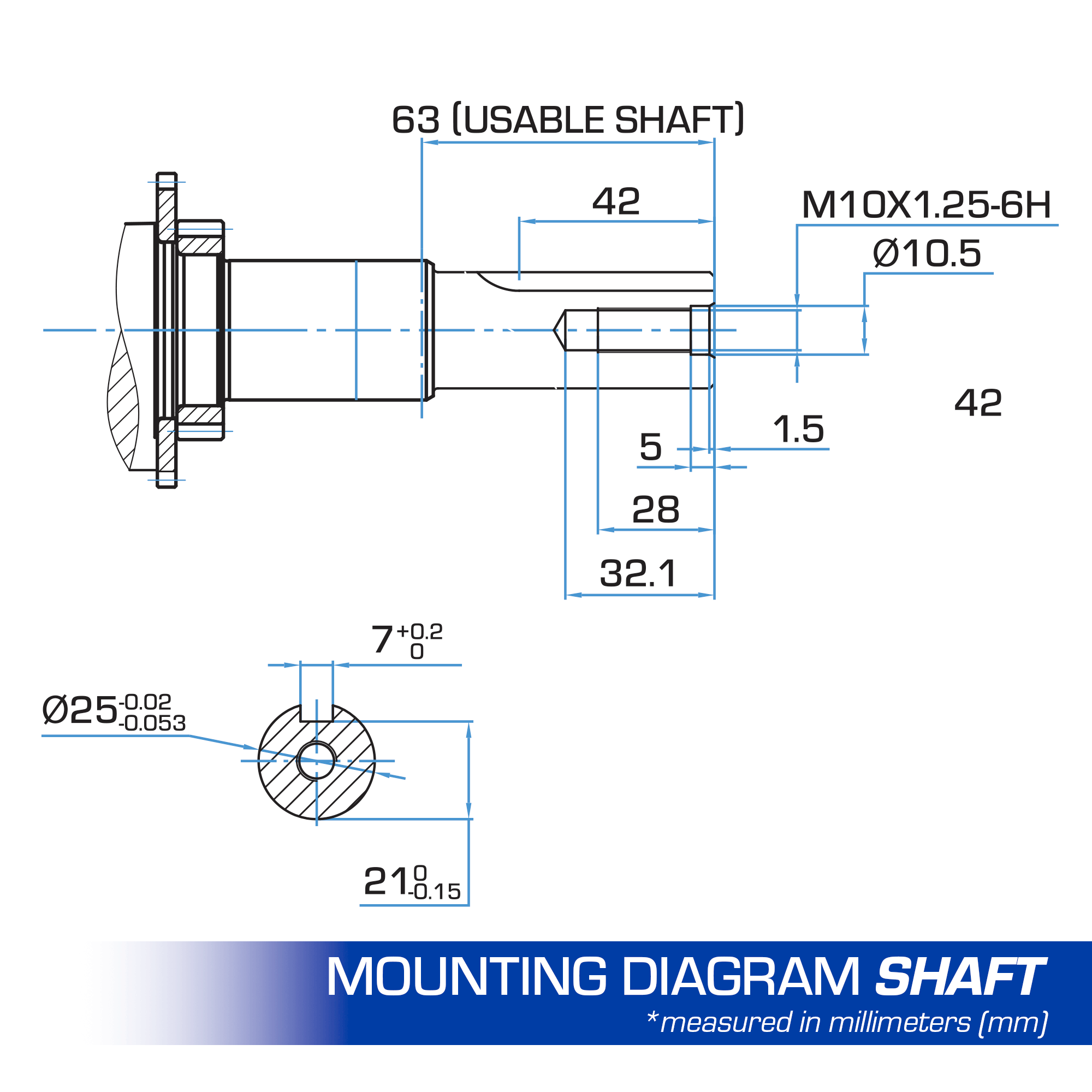

| Shaft Size | 0.984" diameter, 2.48" long, 0.276" keyway |
| Shaft End | M10 x 1.25 - drilled and tapped |
| Shaft Rotation | Counter-Clockwise |
| Measurement from Center of Shaft to Base | 4.175" |

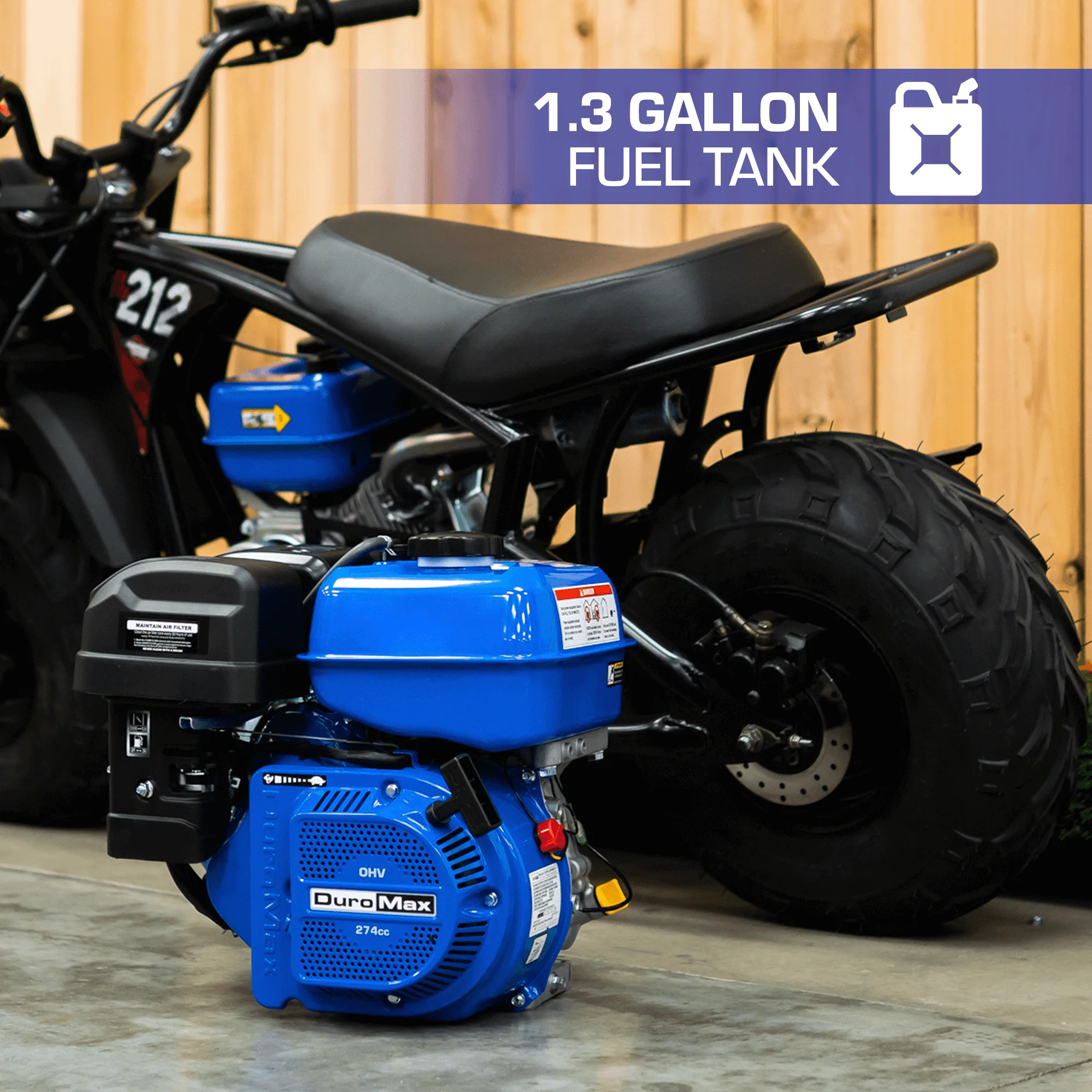

| Fuel Tank Capacity | 1.3 gallons |
| Fuel Types | Gasoline |
| Fuel Delivery System | Carburetor |
| Average runtime on gasoline | 2.35 hours |

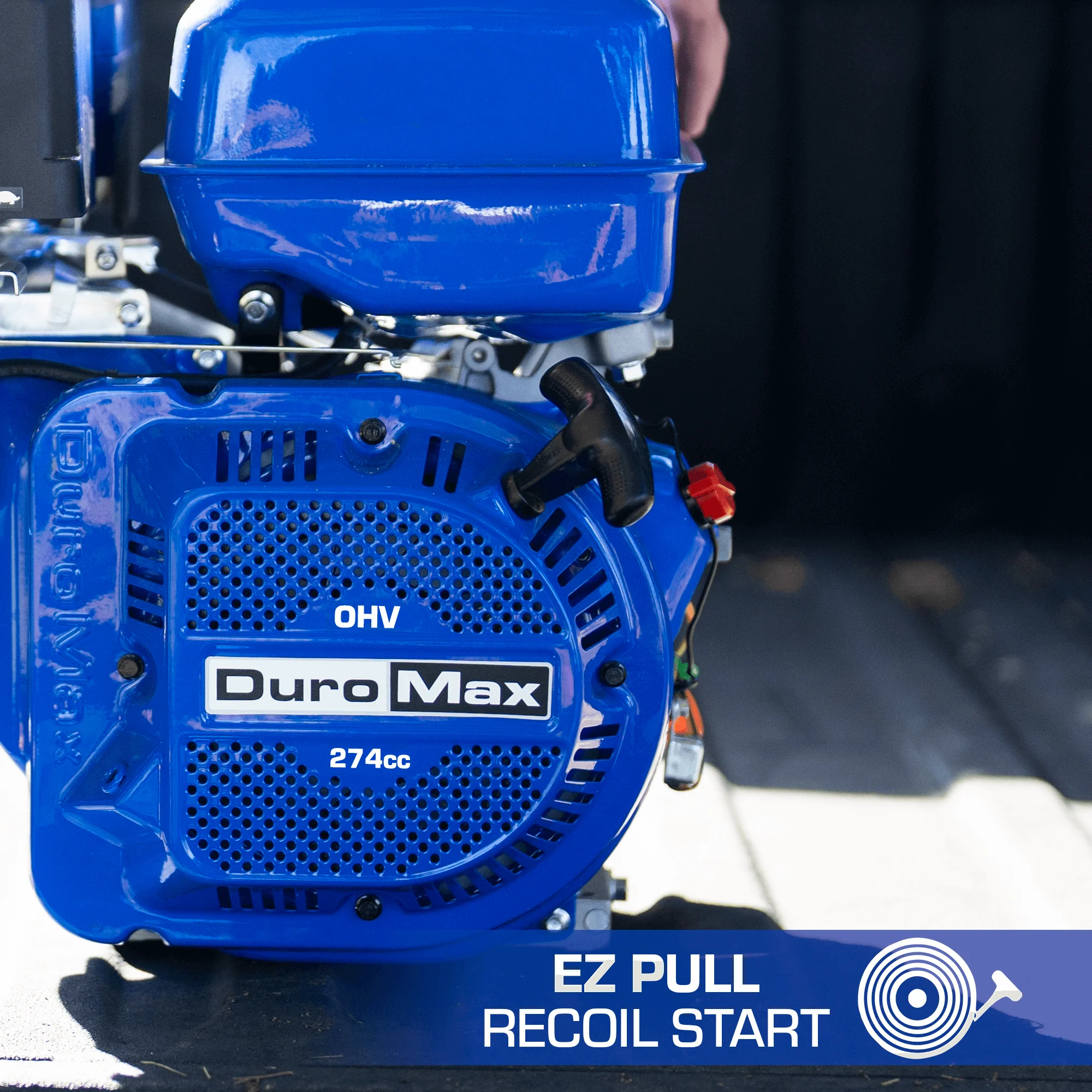

| Starting type | Recoil Start |
| Recoil Start | Yes |
| Cast Iron Sleeve | Yes |
| Bearing Type | Stainless Steel Ball Bearing |
| Oil Cooling Type | Splash |
| Oil Capacity | 23.67 fluid oz. |
| Recommended Oil | 10W-30 |
| Recommended Oil Types | Blended, Conventional, or Synthetic |
| Product Dimensions | 16.4" L x 13.2" W x 15.1" H |
| Weight | 41.9 lbs |
| UPC | 811640016821 |
| EPA Certified | Yes |
| CARB Certified | No |
| 50 State Emissions | No |
| Warranty | 3 Year |
| What's in the Box? | DuroMax XP9HP Engine, Spark Plug Wrench, Oil Funnel, and Owner's Manual |
