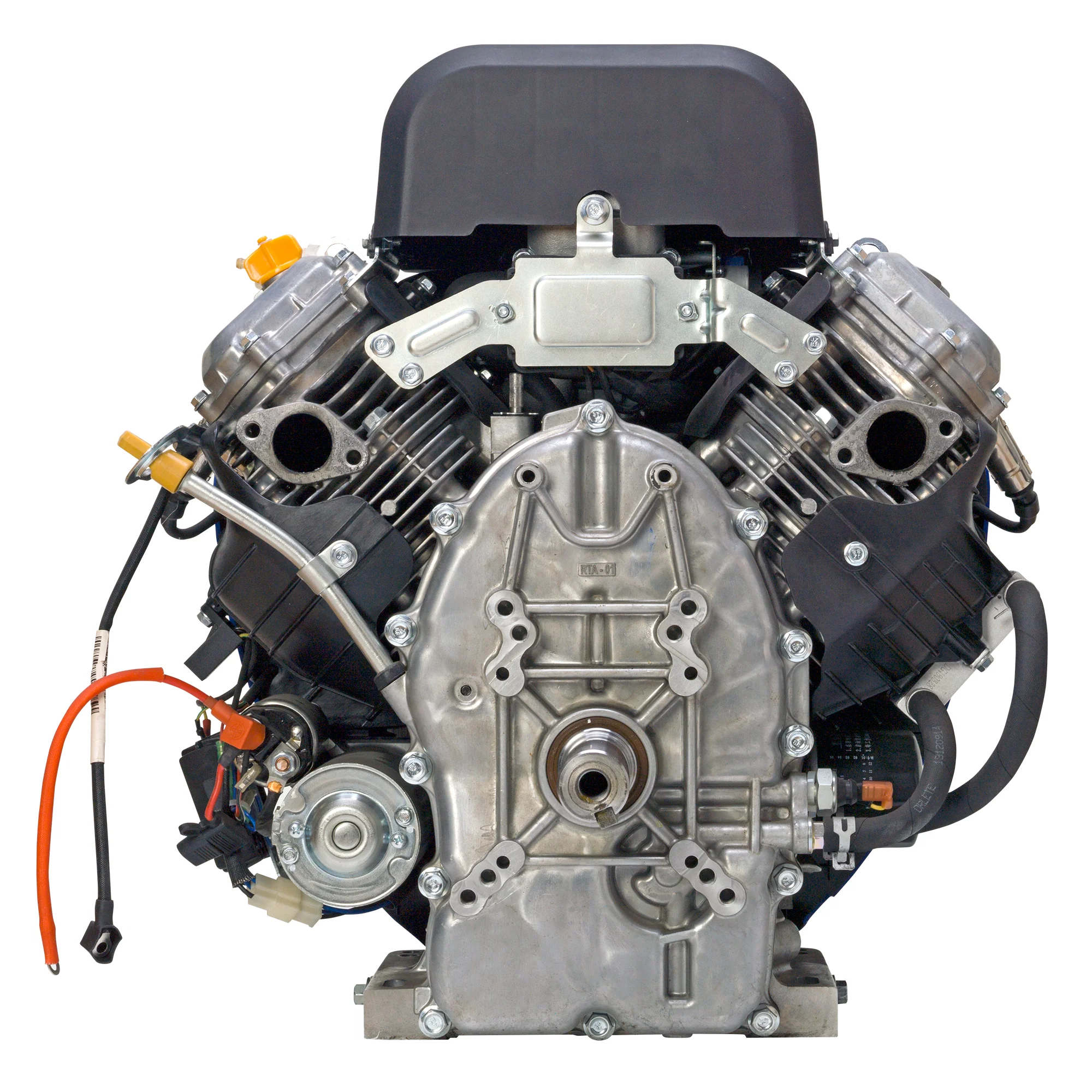

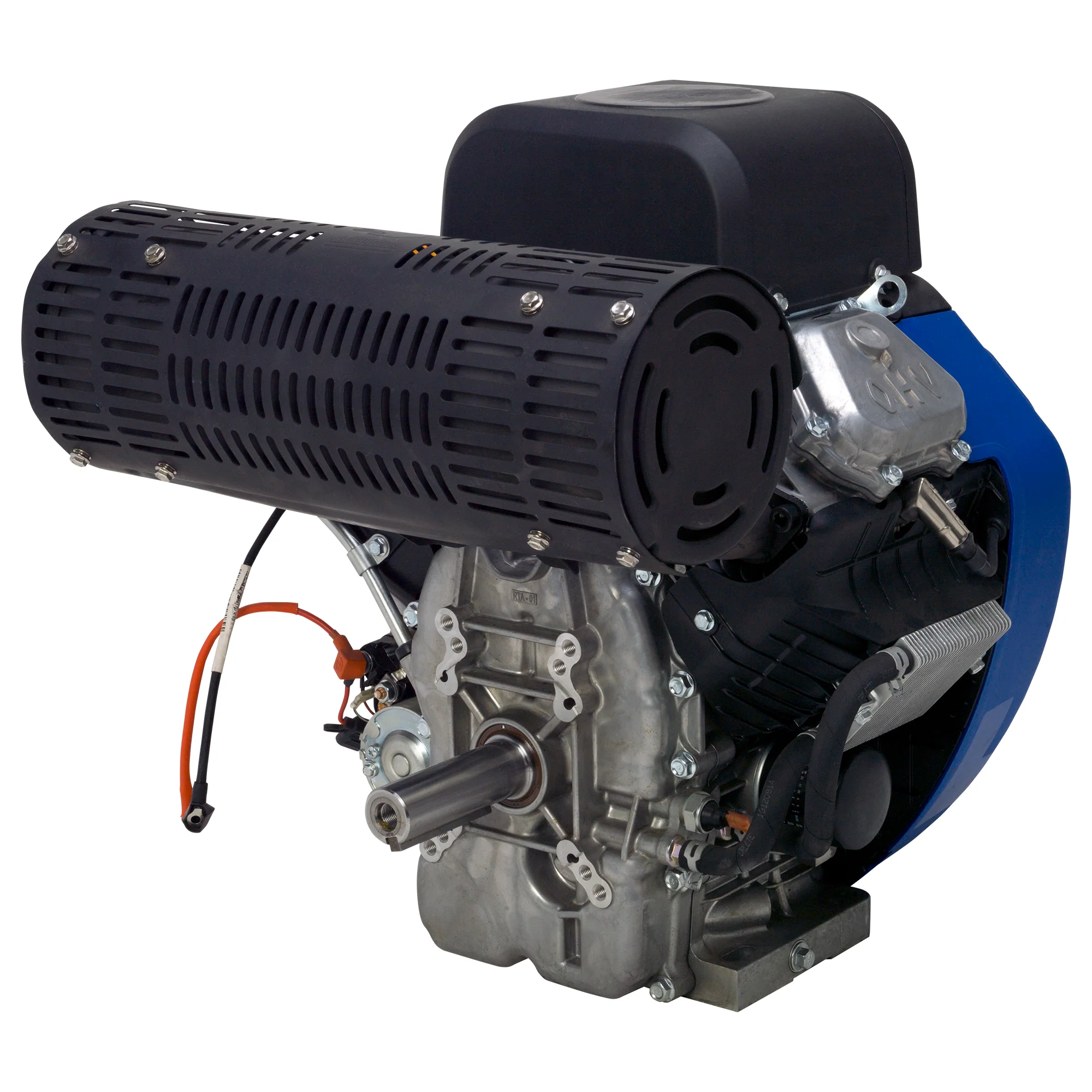

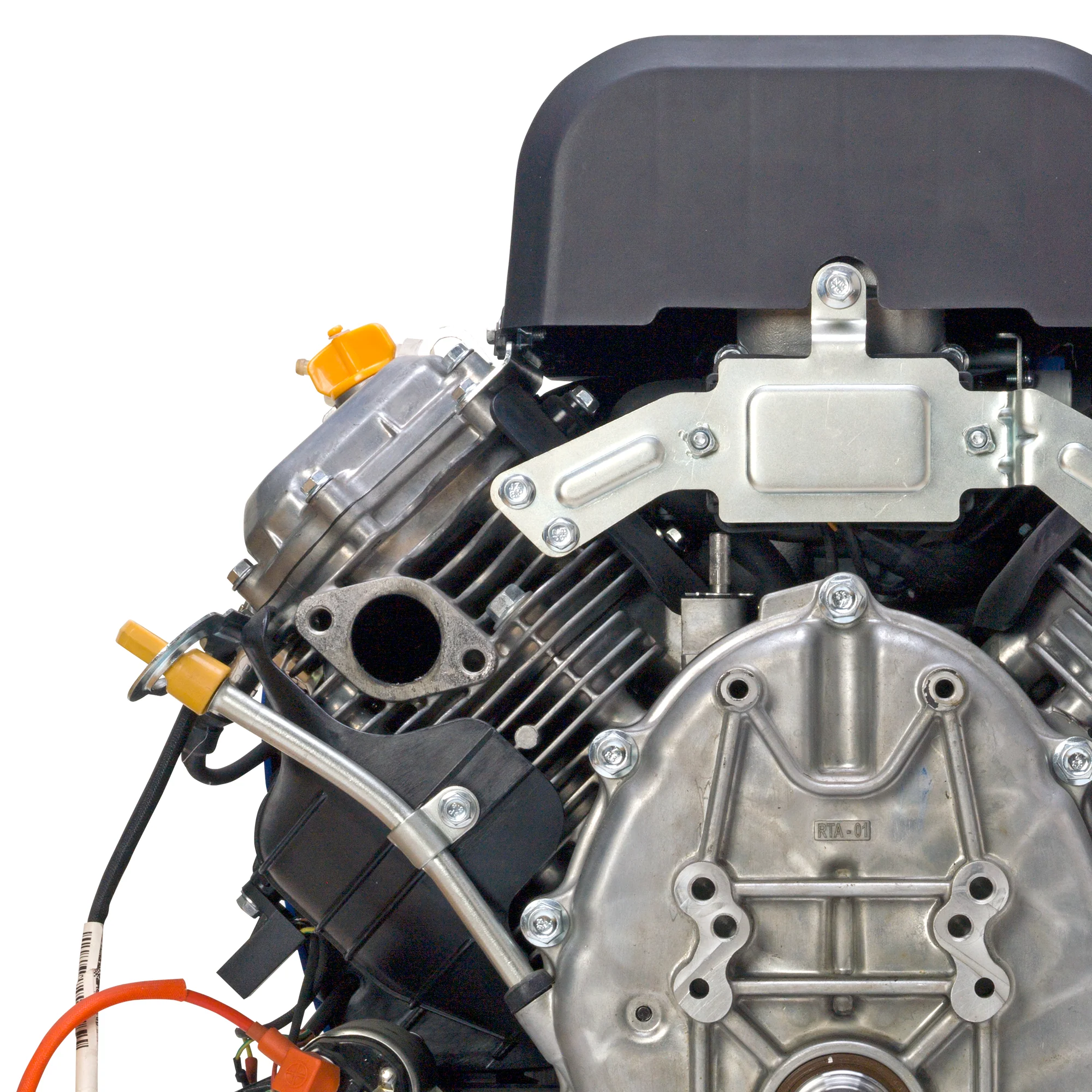

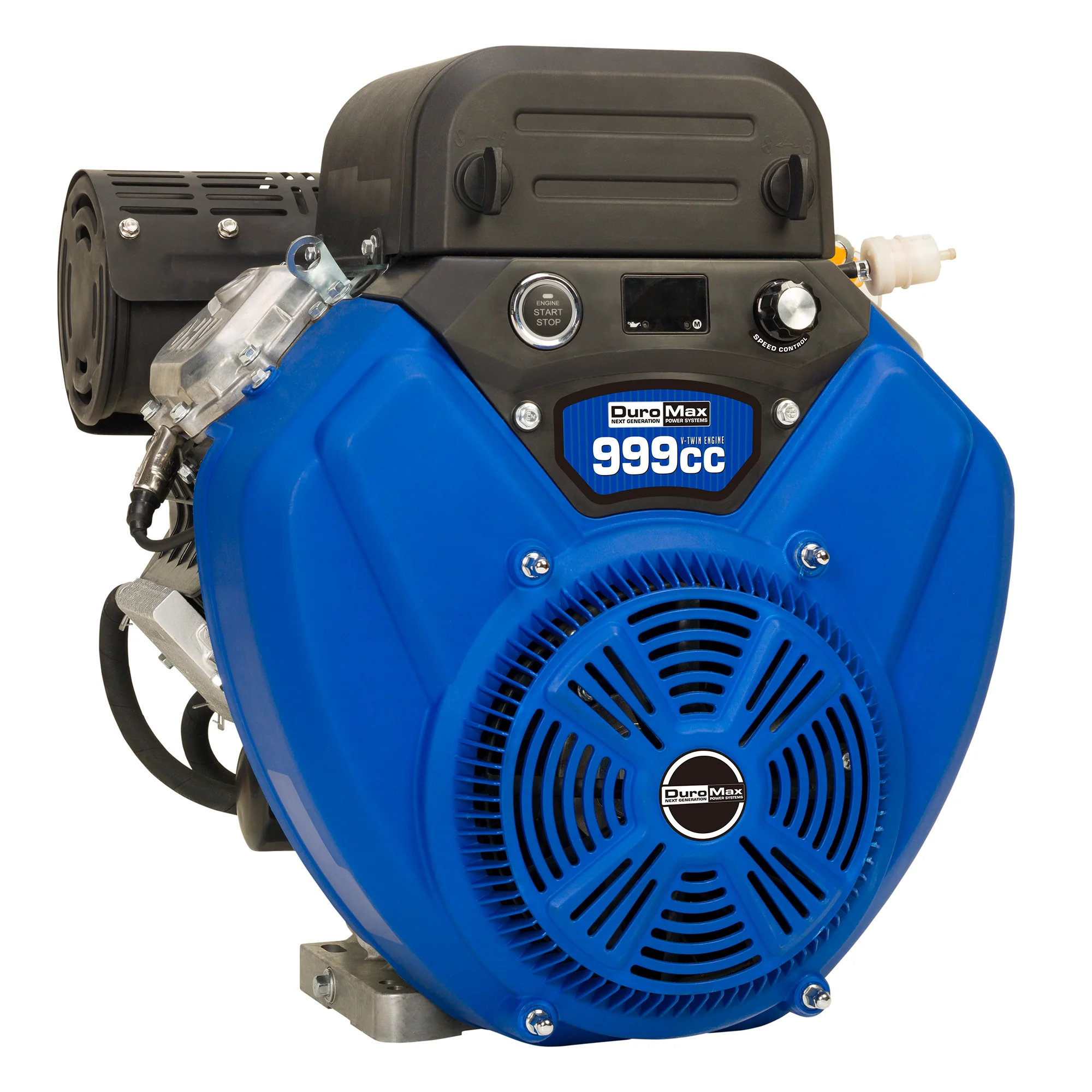

-70%999cc 1-7/16-Inch Shaft V-Twin Electric Start Gasoline Engine—
$1,999.00
$599.70The Story
XP35HPE Specifications
| Specifications | |
| Manufacturer | DuroMax Power Equipment |
| Part # | XP35HPE |
| Engine Type | 4-Stroke |
| Valve Type | OHV |
| Engine Cooling Type | Forced Air |
| Displacement | 999cc |
| Bore | 90mm |
| Stroke | 78.5mm |
| Compression Ratio | 8.6:1 |
| Max Output | 4000 RPM |
| Max Torque | 58 ft-lbs (78 N.m.)@ 2500RPM |
| Shaft Orientation | Horizontal |

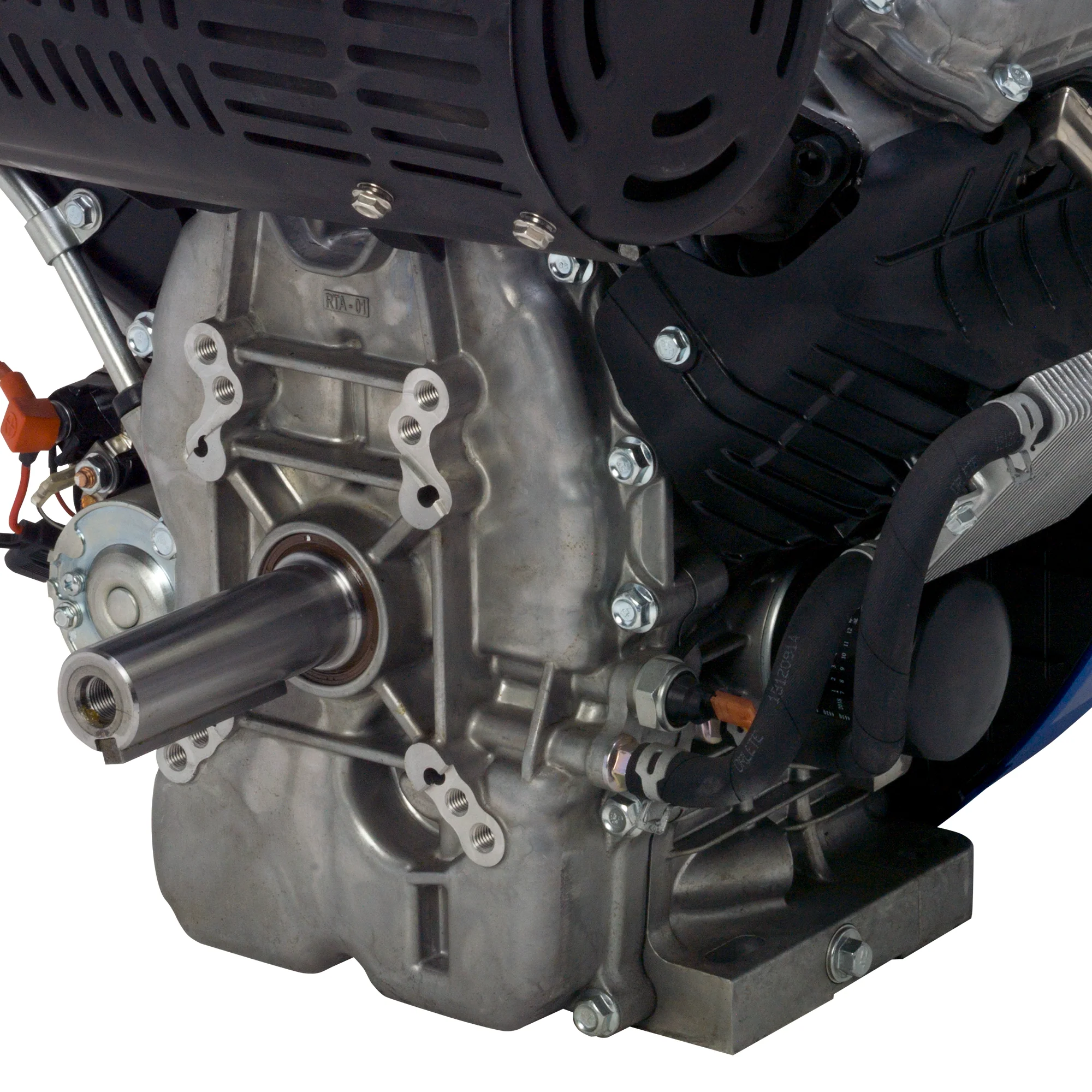

| Shaft Size | 1-7/16" Diameter, 4.6" Long, 3/8" x 3.5" Keyway |
| Shaft End | 5/8" 18UNF-2B |
| Shaft Rotation | Counter Clockwise |
| Measurement from Center of Shaft to Base | 6.1" |
| Fuel Types | Gasoline |
| Fuel Delivery System | Carburetor |
| Starting Type | Push Button Start |
| Electric Start | Yes |
| Cast Iron Sleeve | Yes |
| Bearing Type | Stainless Steel Needle Bearings |
| Oil Cooling Type | Pressure and Splash |
| Oil Capacity | 83.2 fluid oz. |
| Oil Filter Part Number | FRAM PH4967, STP S4967 |
| Recommended Oil | 10W-30 |
| Recommended Oil Types | Blended, Conventional, or Synthetic |
| Product Dimensions | 19.7"-Long x 20.3"-Wide x 22"-High |
| Product Weight | 157-lbs |
| Product Dry Weight | 126-lbs |
| UPC | 811640016463 |
| Warranty | 3 Year |
| EPA Certified | Yes |
| Wiring Diagram | (View PDF) |

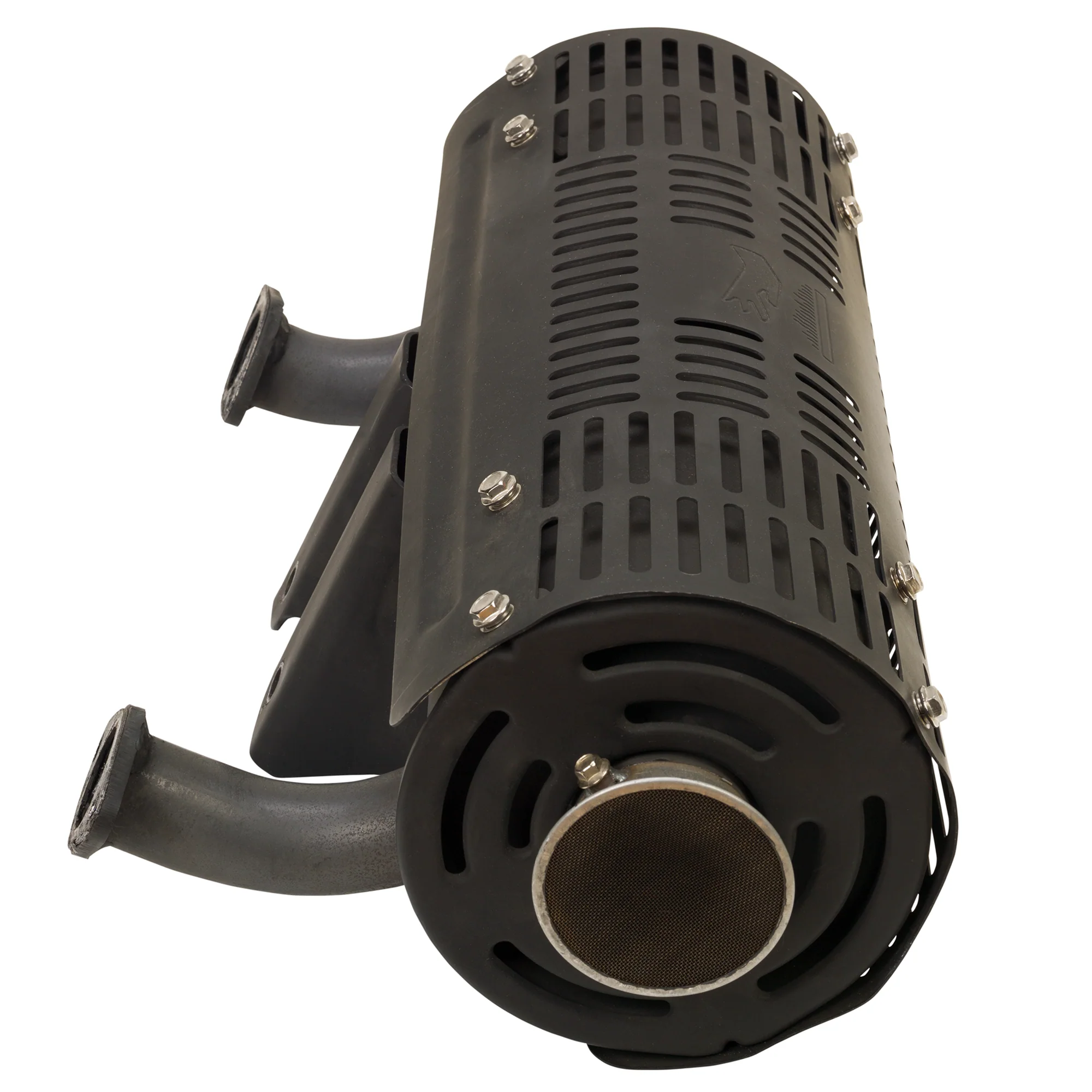

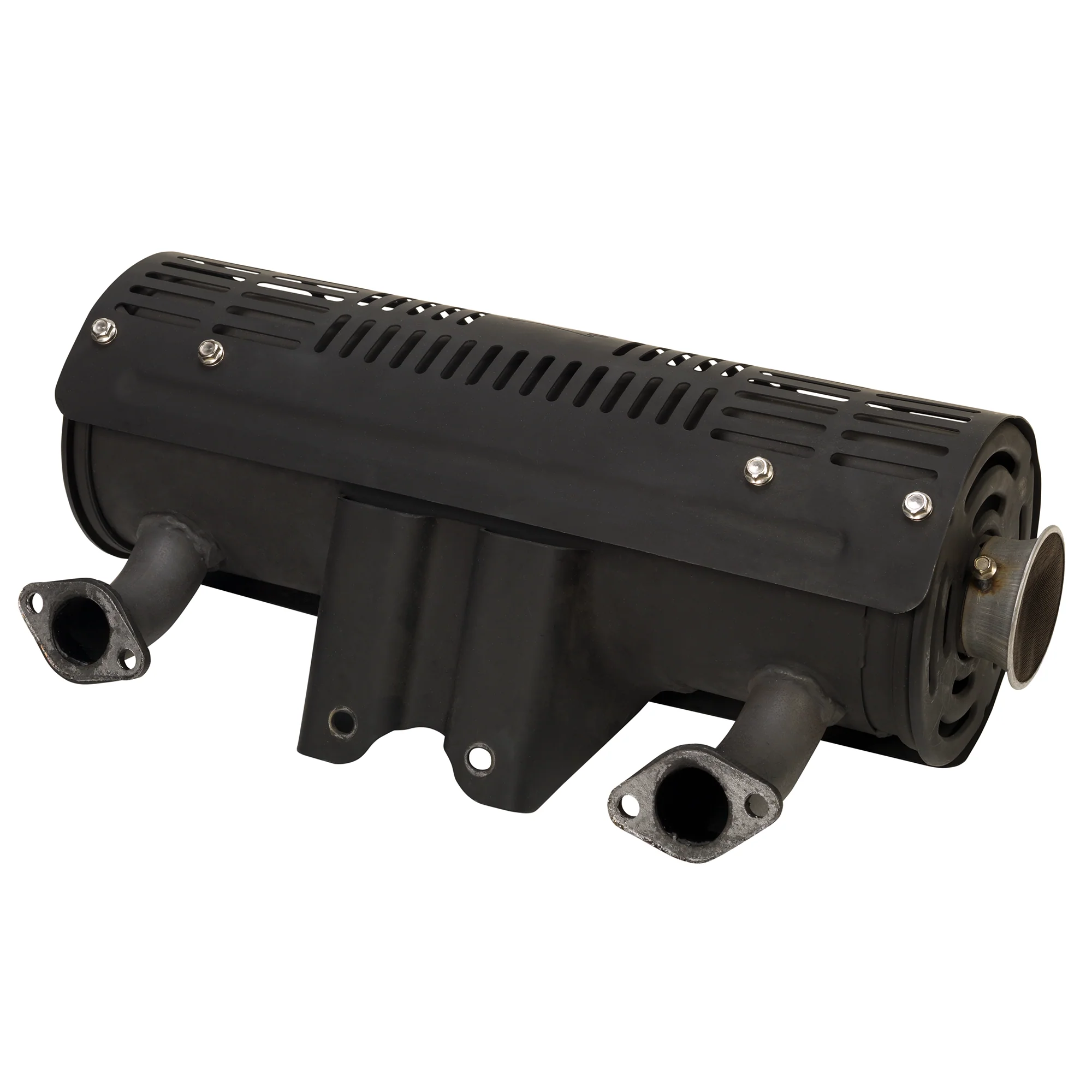

| What's in the Box? | DuroMax XP35HPE Engine, Compatible Muffler, and Owner's Manual |
